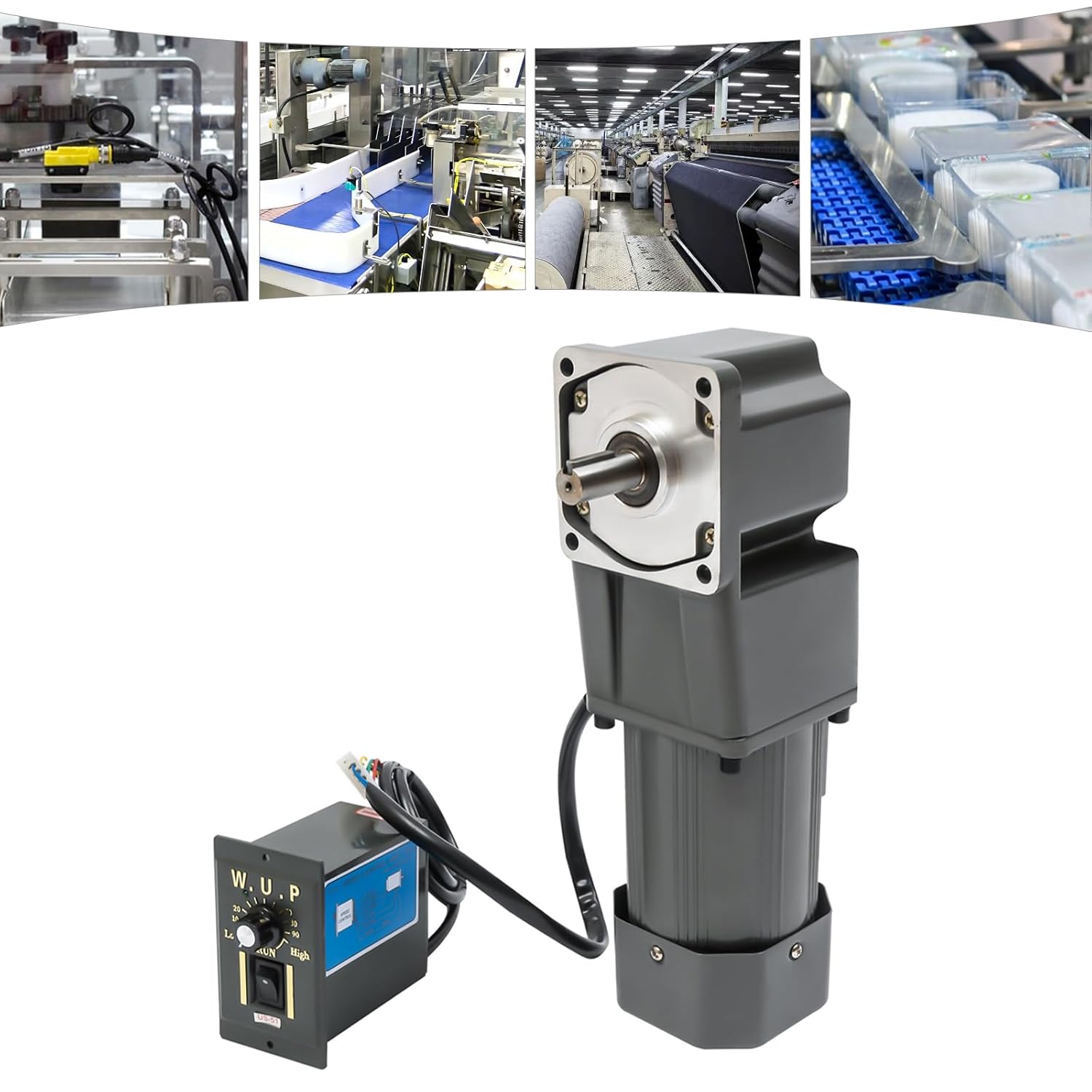

Electric Gear Motor 200W 30K High Torque Reduction AC Motor with Governor, 36NM 110V Variable Speed Controller Reducer, with 90° Right Angle Output Shaft and Reversing Function

Notes1.Our motors do not include the power cord and the bracket.2. Please do not knock on the machine.3.The speed of the output shaft is different under different reduction ratios.When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.4.The motor can run for a long time within the safe speed regulation range.The safe speed regulation range for small loads is 50% of full speed-full speed. The safe speed regulation range for large loads is 70% of full speed-full speed.Product detailsMaterial: Medium Carbon Tempered SteelColor: Dark GreyProcess: Plastic Spraying, One-piece Forming, Heat TreatmentType: Medium Solid MotorReduction Ratio: 1:30 (30K)Power Supply: WiringVoltage: 110VPower: 200WTorque: 36NMRotational Speed: 45R/MINOutput: 90° Right Angle OutputGross Weight: 10kg/ 22.05 lbsNet Weight:9kg/19.84lbsTotal Height: 34.4cm/13.54 inReduction Box Size: 10.4*10.4cm/4.09*4.09inGovernor Size: 10*6*9cm/3.9*2.4*3.5inSpeed Range1. The lower the governor's speed, the slower the speed, the smaller the force. The normal reasonable speed range is 50%~100%.2. The larger the speed ratio, the slower the speed, the greater the force; the smaller the speed ratio, the faster the speed, the smaller the force. (Example: Both are 20 revolutions, but the 20 revolutions directly from the reducer are 2-3 times smaller than selecting a 40 revolution and then adjusting to 20 revolutions.)Package Included1 * Speed Reduction Motor1 * Speed Governor1 * English ManualAll Accessories for Installation

• 【Robust and Durable Structure】Our AC gear motors feature a housing crafted from medium carbon tempered steel. Through processes like plastic spraying, one-piece molding, and heat treatment, the shell is built to be sturdy, durable and heat-resistant, offering effective protection for the internal components. The 5GU gear has high strength, and the keyway of the shaft is equipped with fixed key pins, which are wear-resistant and stable.
• 【High Efficiency&Stable】This motor delivers an output speed of 0-45 RPM. The stable pure purple copper coil and gear set consisting of full ball bearings and medium carbon tempered steel gears can effectively increases the motor's torque, ensuring smoother and more powerful operation. Ball bearings are installed at both ends of the stator, resulting in low friction, reduced temperature, and minimal noise.
• 【Adjustable Speed】The speed reduction motor offers high speed regulation precision and a wide adjustment range, allowing you to tailor the speed for different applications simply by turning the knob on the speed controller. Reduction ratio: 1:30 (30K). The speed of the output shaft is different under different reduction ratios. When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.
• 【Flexible Use】This product features a flexible normally open and normally closed control system, which can be adapted by changing wires or adding a switch to meet various application requirements. An integrated cooling fan and ventilation openings at the bottom facilitate timely and effective heat dissipation, guaranteeing long-term stable performance.
• 【Wide Applicability】Our speed reduction motor allows you to adjust the right speed for different applications. It is suitable for a wide range of industries and equipment, such as packaging, printing, food processing, barbecue grills, as well as applications in advertising, office equipment, instruments, stage lighting, automated warehouses, and parking systems.
