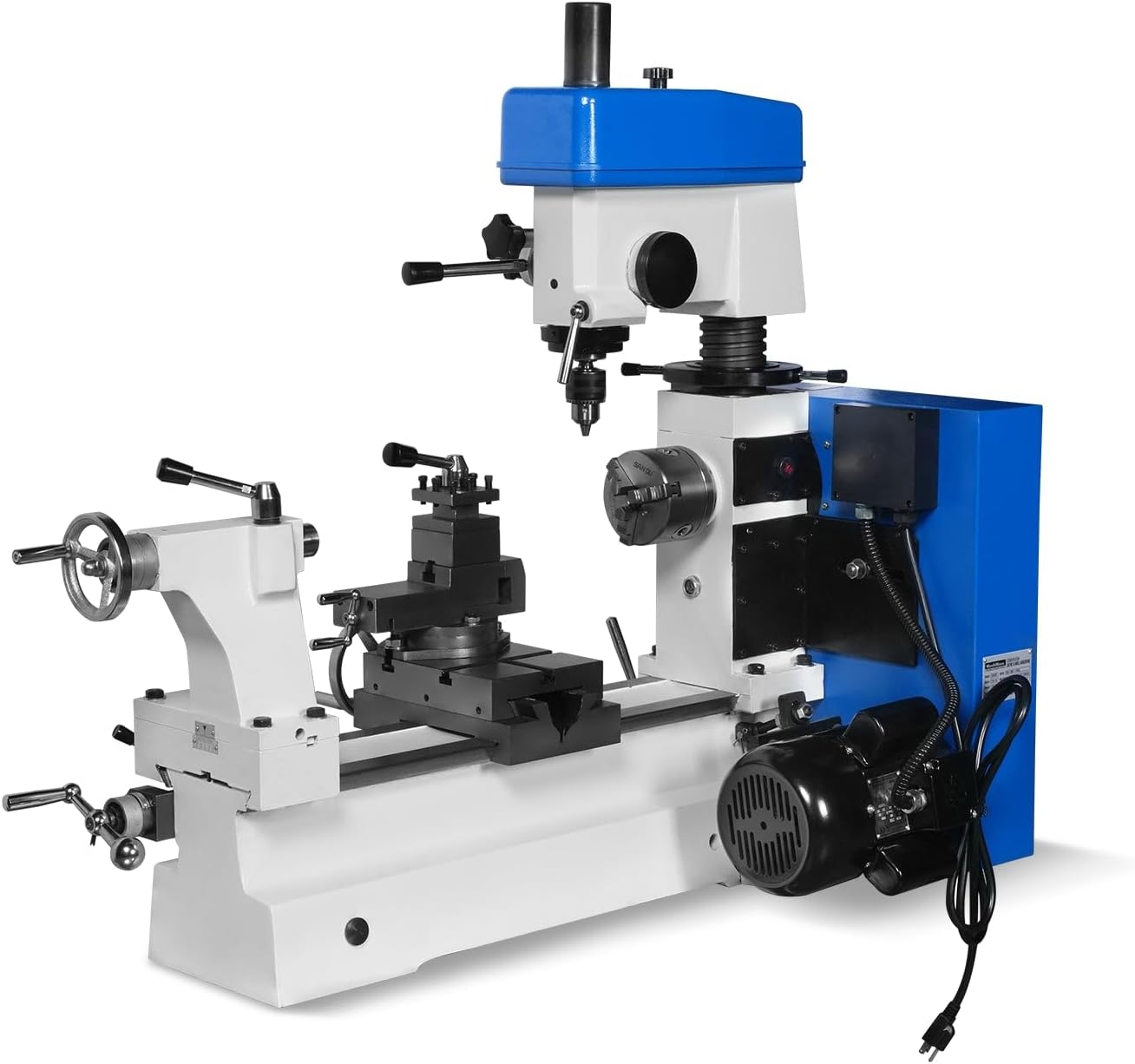

Mechmaxx 1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor, without Stand,CLM1620
4.3 (37 items)
Limited Time Sale$1,439.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221716415 | Release Date | 2026/05/03 | List Price | $959.60 | Model Number | 221716415 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ①Powerful Motor: The lathe motor is 1PH (750W), providing sufficient power for turning applications. ②Swing Over Bed: Offers a 16-8/15" (420mm) swing, allowing you to handle larger workpieces. ③Swing Over Cross Slide: Provides 11-1/2" (120mm) for efficient machining with increased clearance.
- ①Threading Capacity: Capable of cutting 8-120 TPI in inches and 0.2-3mm in metric, offering flexibility for various threading applications. ②Spindle Bore: With a 11/14" (20mm) spindle bore, this lathe can handle a variety of tool bits and workpieces. ③Carriage Travel: 15" (380mm) carriage travel ensures versatility when working on larger components.

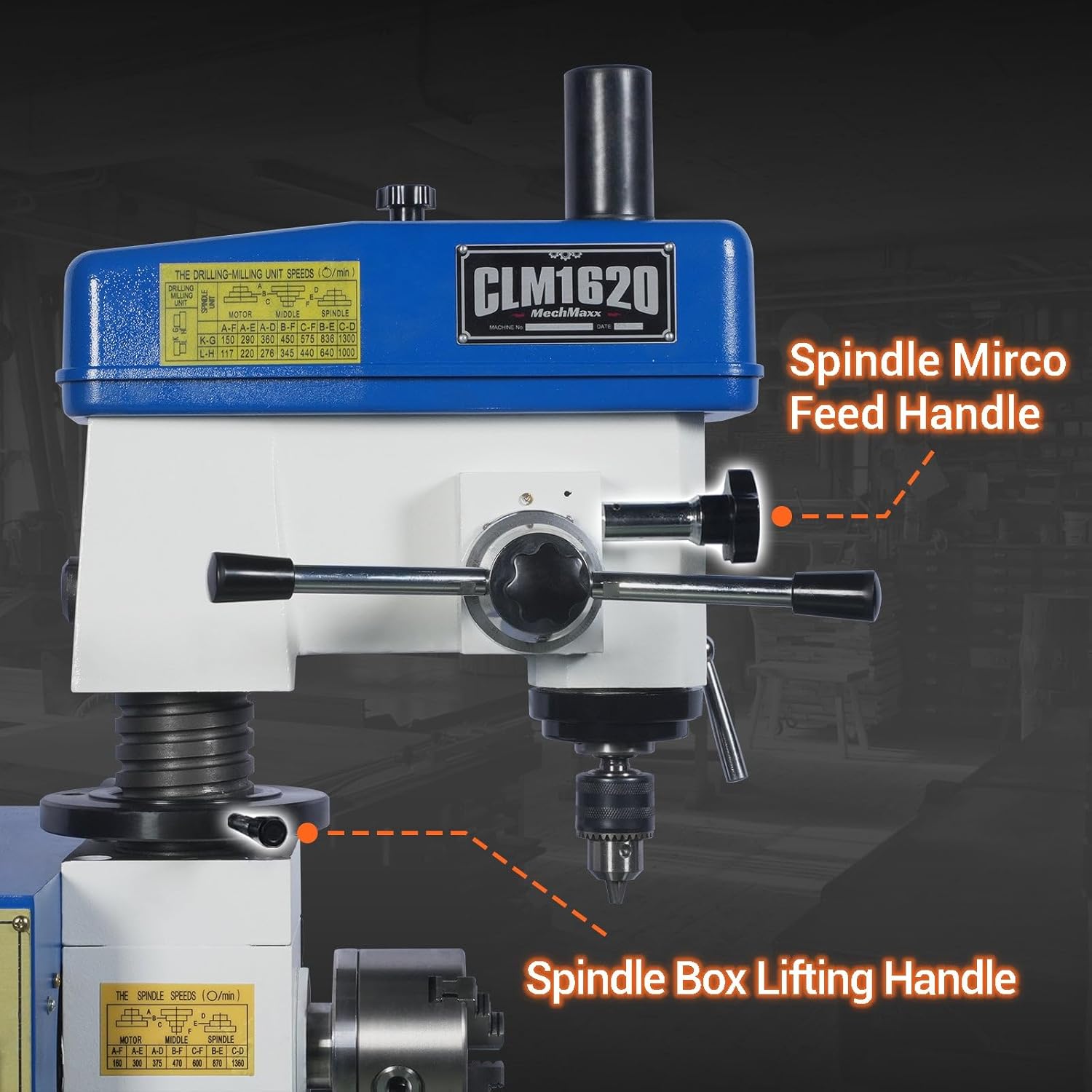

- ①High Precision: Equipped with a 7-speed spindle ranging from 160 to 1360 RPM, allowing precise speed adjustments for different turning tasks. ②Mill Head Powered by Lathe Motor: The mill head is powered directly by the lathe’s motor, providing integrated power for both milling and drilling.
- ①Wide Speed Range: Features a 14-step spindle speed range, including 117 to 1300 RPM, ensuring flexibility across different milling and drilling operations. ②Milling Capacity: The machine supports up to 25/32" (20mm) for end milling and 2-1/2" (63mm) for face milling, providing excellent material removal capacity.
- ①Drilling Capacity: The lathe is capable of drilling up to 19/32" (15mm), allowing for precise hole-making in various materials. ②Adjustable Head: With a 360° swivel angle and a 0° head tilt, the headstock can be adjusted for a wide range of milling and drilling tasks, increasing flexibility. ③Vertical Travel (Z-Axis): Provides 3-5/32" (80mm) vertical travel for better depth control during operations.
| Voltage | 110 |
|---|---|
| Brand Name | MechMaxx |
| Manufacturer | Mechmaxx |
| Model Number | CLM1620 |
| Power Source | Motor |
| Included Components | User Manual |
