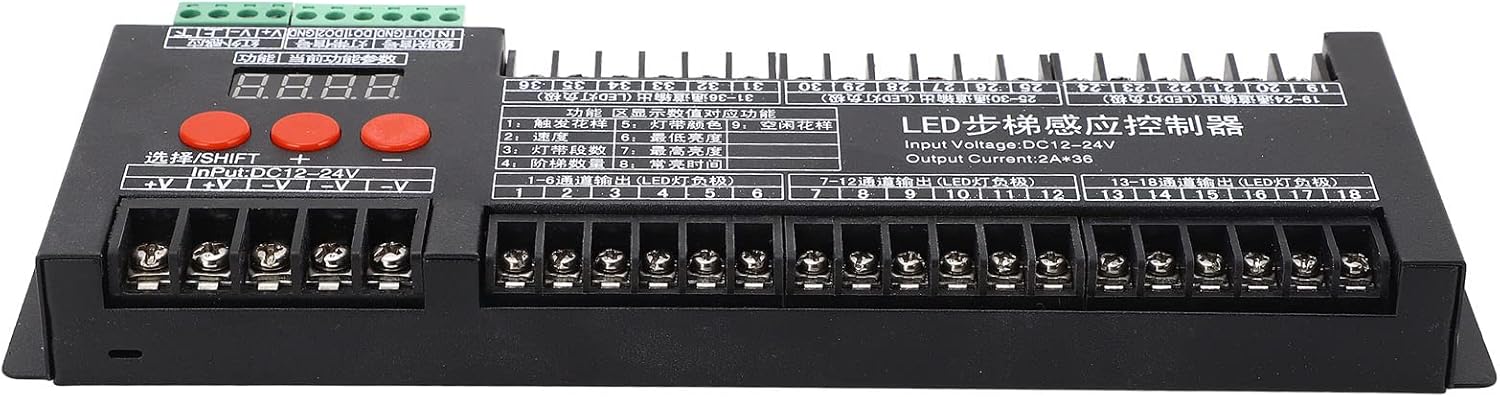

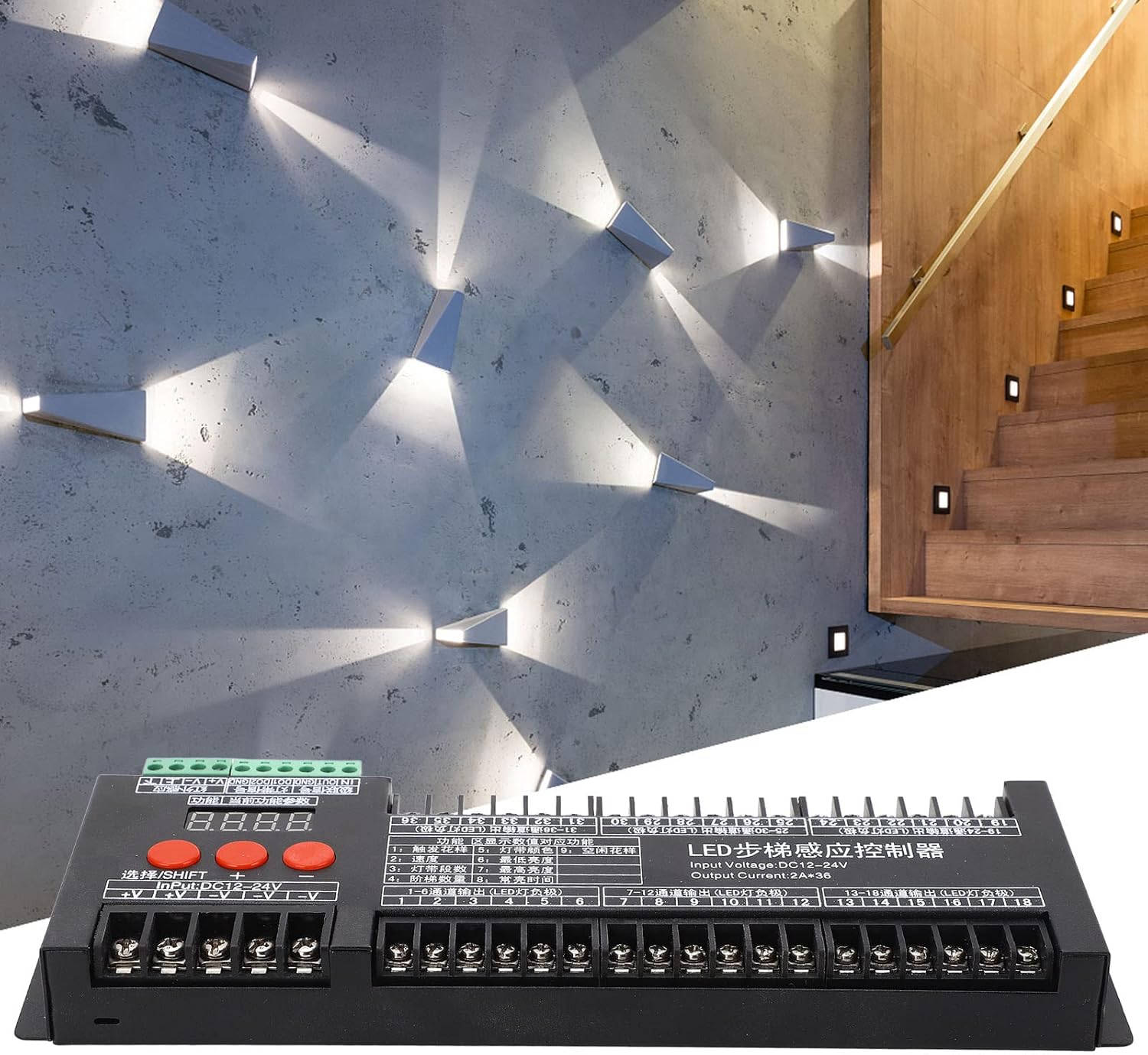

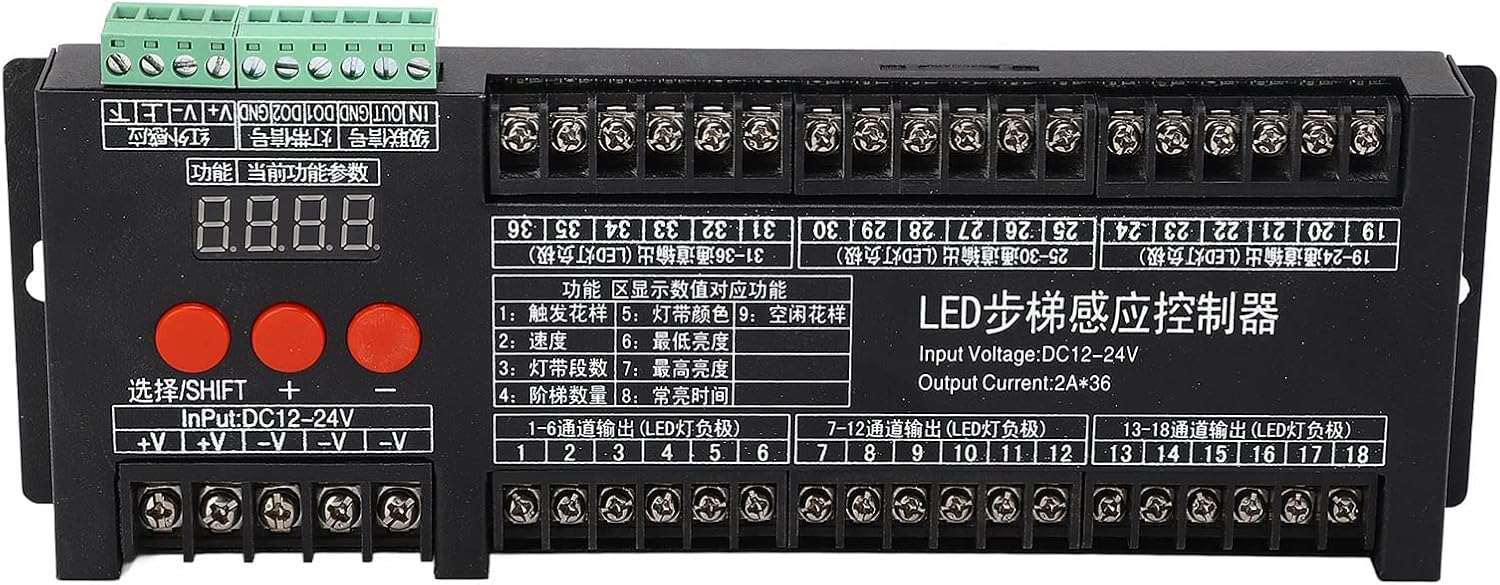

Stair Light Motion Sensor, Stair Light Intelligent Motion Sensor Indoor Stairway Lighting LED Controller DC 12V to 24V for Home, Step Lights

Specification: Item Type: Stair Light Motion Sensor Material: ABS Input Voltage: DC 12-24V Output Current: 2A x 36 way. Light Bands: 600 strings. Stairs: 36 stairs for single,72 stairs for 2 cascaded . Applicable Scene: For home, hotel, bar. How to Use: 1. Trigger Pattern: There are 7 options, 0 of all off. 1 of all on, 2 of follow, 3 of stair and light band turn on and off one by one, 4 of stair turns on and off one by one, light band turns on and off one by one, 5 of stair and light band turn on and off one by one, 6 of stair light band turns on and off gradually. 2. Speed: 130 levels adjustable, 1st is the fastest, 30th is the slowest. 3. Light Band: Adjustable within 0600. 4. Stairs: Adjustable within the range of 1-72, 36 channels for a single set, and 2 sets can be cascaded to 72 steps. 5. Light Band Color: If RGB light band is used, 7 colors can be adjusted, and the brightness of light band can be adjusted. 6. Minimum Brightness: For the brightness without triggering, which can provide small night light effect, 0 is not on, 10 is the brightest. 7. Maximum Brightness: Adjustable in the range of 30-255, with the lowest brightness of 30th and the highest brightness of 255th. 8. Constant Lighting Time: Adjust the time of full light after triggering, adjustable within the range of 0-120, 0.5 second interval, 0 second without delay, 2 x 0.5 seconds for 1 second, and 60 seconds when adjusted to 120. 9. Idle Pattern: For the pattern without triggering, the light band is a trailing effect. The stair gradually lights up and goes out from bottom to top, 0 is off, 1 is on. PackageList: 1 x Controller 2 x Sensor 2 x Number Sticker Note: 1. When the lamp is inserted into the controller, it must be inserted into the corresponding serial number socket. 2. The controller and inductor can be concealed in the electric box. 3.

• Premium The induction light controller has IP20 grade, convenient installation, and .
• Quick Installation: The controller has 36 interfaces, and the required light strips are inserted in sequence during use, which is easy to install and operate.
• Excellent Sensor: The LED stair light induction controller kit adopts intelligent human body motion sensor design, and the control range can get to 30 meters.
• Simpler in Setting: With 5 brightness setting and lighting speed setting, it is widely used in families, hotels or shopping centers.
• Multiple Functions: With induction control, lighting speed control, brightness control, lighting delay design and so on, very practical in use.
