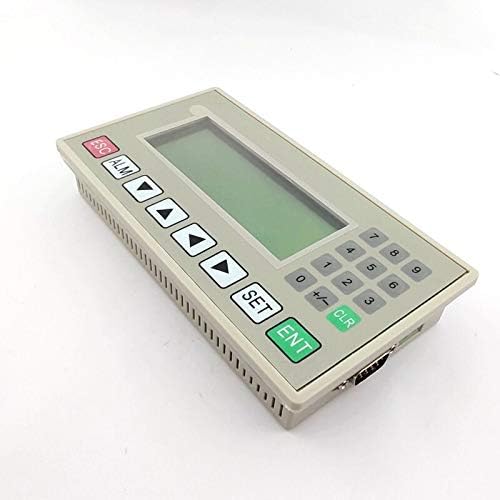

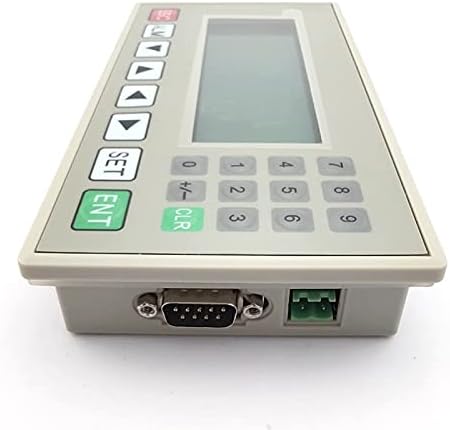

Text Display OP320- A V8. 0 OP320-A- s MD204L Supports 232 422 485 Communication PLC Link Text (Color : OP320-A Yellow)

OP320- A( English film blue screen)OP320- A( English film yellow screen)OP320-A- S( English film blue screen)OP320-A- S( English film yellow screen) MD204( English film blue screen) MD204( English film yellow screen) MD204( English film green screen) Support PLC for a wide range of perfect compatibility The difference between OP320- A and OP320-A- S is that OP320- A is a built- in 232 and 422 communication port, and OP320-A- S is a 232 and 485 communication port. Technical ParametersDisplay: 3.7" STN LCD Power supply: 12~24VDC±10%Resolution: 192× 64 pixels ( supports 4 lines× 12 Chinese characters display) <;150MA@24VDC LCM type: blue screenAnti- interference test: voltage 1500VP-P LCM display effect: blue screen is white on a blue background with white light. Pulse period 1US, lasting 1S LCM life: 50, 000 hours at 25 ° 2° C, 65± 10% Withstand voltage test: 500VAC 1 minuteBrightness: 60CD/M2 Insulation resistance: more than 10M ohms @500VDCColor: Monochrome| Shockproof test: 10~25HZContrast: potentiometer adjustment. (XG, Y, Z direction 2G30 minutes)Backlight: Long life LED white light Protection level: IP65( front panel)CPU: 8- bit processor Working environment temperature: 0~50°C Memory 64KB FLASH ROM Working environment humidity: 20~90% (non-condensing) Recipe memory: none Storage temperature: D- 20° C~ 70° C Communication port: COM1: PC RS232 & PLCHousingmaterial engineering plastic ABSRS485/422&PLCRS232Dimensions172X95X30MM Function buttons: 20 freely definable Display size: 101×36MM Real time clock: no installation Opening size: 165X86MM Print port: none Cooling method: natural air cooling Allow power loss: less than 20MSWeight: 0.3KG Support Chinese and English, two display fonts Create the screen on the computer through the editing software,

• Support PLC for a wide range of perfect compatibility
• The difference between OP320- A and OP320-A- S is that OP320- A is a built- in 232 and 422 communication port, and OP320-A- S is a 232 and 485 communication port.
